Oral liquid bottle washing-sterilization-filling-capping linkage line
Oral liquid bottle washing-sterilization-filling-capping linkage line

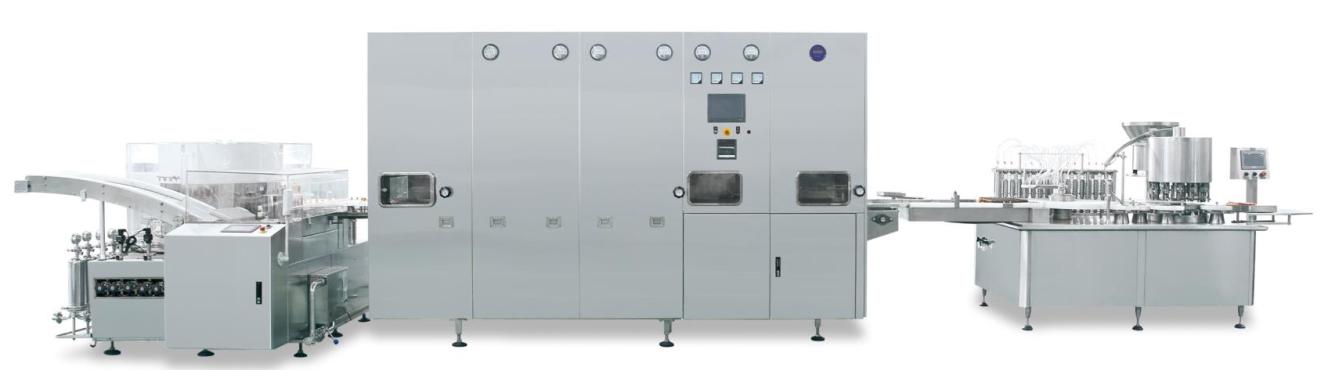

The linkage line consists of HQCLA series vertical ultrasonic washing machine, HSDH series hot air circulation sterilization tunnel, HKGZ series oral liquid filling and capping machine. The model can be used in combination or in a single machine. The linkage line can complete water spray filling. ultrasonic cleaning and flushing (internal and external),CA flushing (internal and external), preheating, drying and sterilizing to remove heat source, cooling, filling. sealing. capping and other processes.

This line can meet the size range from 5-30 ml 50-500 ml all kinds of oral liquid bottles, infusion bottles, bottles of syrup bottle which can reach the process requirements of heat source removal, filing and capping etc.

Vertical ultrasonic washing machine using ultrasonic rough washing circulating water, WFl and clean compressed air spray and clean the container alternately. Cleaning clarity and visible material detection effect is ideal: it is the most popular cleaning machine in the world today.

The filling and capping machine adopts big wheel transfer, and reciprocating tracking filling. single or three knife form, with high capping rate. it is the most popular filling and capping machine in the world today.
