Ampule washing sterilization filling sealing linkage line
Ampule washing sterilization filling sealing linkage line

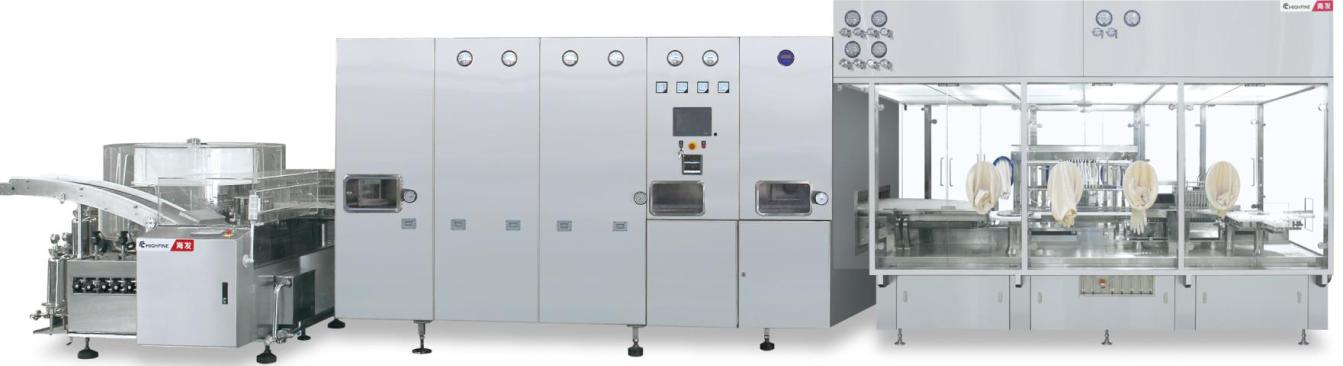

The linkage line consists of HQCLA series vertical ultrasonic washing machine, HSDH series hot air circulation sterilization tunnel, HSA series filing and sealing machine, The model can be used in combination or in single machine, The linkage line can complete cleaning and flushing (internal and external), preheating, drying and sterilizing to remove heat source, cooling, before and after nitrogen sealing after preheating, sealing and other processes. This line can meet the size range from 1-20 ml ampoule of washing, drying and sterilizing to remove heat source, filling and sealing requirements of the production process.


Vertical ultrasonic washing machine using ultrasonic rough washing circulation water, WFl and clean compressed air spray and clean the container alternately. Cleaning clarity and visible material detection effect is ideal: it is the most popular cleaning machine in the world today.

The sterilization tunnel adopts the principle of hot air laminar flow and high temperature sterilization process to preheat, dry, sterilize, remove, heat and sterilization process. lt is the most popular drying and sterilization machine in the world.
